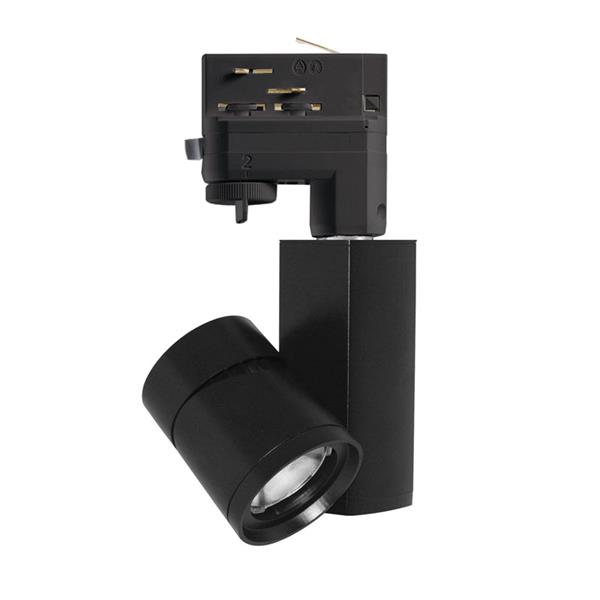

T382L HTEK Trac Head

Trac-Master® Vertical Cylinder LED Trac Head with HTEK Adapter
    CA Title 24/JA8Buy America(n) Option AvailableBuy America(n) Option Available
  • Overview
  • Specifications
The classic appearance of the T382L HTEK LED Vertical Cylinder fixture offers a fresh take on the traditional aesthetic. This 17W state-of-the-art trac light delivers over 1800 lumens, up to 80% more efficient than equivalent halogen and has a rated life of 50,000-hours. It is available in 2700K, 3000K, 3500K and 4000K color temperatures and 80 or 90 CRI versions. Optional SpectralWhite color/white enhancing versions offer 90+ CRI, rendering colors richly and making whites appear naturally brilliant.
High performance LED array provides outstanding reliability, performance and color quality/consistency, chromaticity range within a 3-step MacAdam Ellipse 2700K, 3000K, 3500K and 4000K CCT's offer 80 CRI and 90 CRI versions. SpectralWhite version available in 3000K and 3500K, offers 90+ CRI All metal housing and custom designed heat sink provide outstanding thermal management, yielding 70 percent minimum lumen maintenance at 50,000-hours of operation Driver assembled in a side-mount vertical housing to minimize overall fixture footprint. Insulating air gap between driver and LED light engine optimizes thermal operation Precision designed custom TIR optical system available in either spot, narrow flood, flood or wide flood beam distributions An integral, bayonet-mount accessory holder enables quick conversion between beam spreads. Accommodates one accessory if desired 360-degree horizontal coverage, greater than 90-degree vertical aiming capability Available in white, black or silver finishes UL/cUL Listed. ENERGY STAR® Certified. DesignLights Consortium® Qualified
Read More
Read Less
Shape Cylinder
Light Source LED - Static
Lumens 1800 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90, 90 SpectralWhite
Product Type Track Head
Compliance Listing BAA and BABA, CA Title 24, JA8
Regulatory Listing C-UL-US, cUL, UL
Color Black, Silver, White
Mounting Type Track/Monopoint
Voltage Rating 277
Fixture Wattage 19
Track Mounting Adapter HTEK
Series T382L

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet T382L G2.pdf T382L G2 Spec Sheet 10/14/2024 View

    Design Select
    Take Me There
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    1 - 1 of results

    Description Report Design Tools
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet Spectral Data Report_T382L 27K 80CRI.pdf T382L G2 27K 80CRI 5/19/2022 View
    Spectral Data Sheet Spectral Data Report_T382L 35K 90CRI.pdf T382L G2 35K 90CRI 5/19/2022 View
    Spectral Data Sheet Spectral Data Report_T382L 40K 80CRI.pdf T382L G2 40K 80CRI 5/19/2022 View
    Spectral Data Sheet Spectral Data Report_T382L 40K 90CRI.pdf T382L G2 40K 90CRI 5/19/2022 View
  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions P3219.pdf HTEK 277V Lighting Trac System Fixture Adapter Installation Instructions 5/5/2017 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Brochures Juno LED Vertical Cylinders Brochure.pdf Trac-Master Vertical LED Cylinders 12/20/2024 View
