L7XR
- Overview
- Specifications
Recessed incandescent housings for 2x8 remodel construction. Approved for direct burial in insulation and all ceiling and wiring types.
Construction

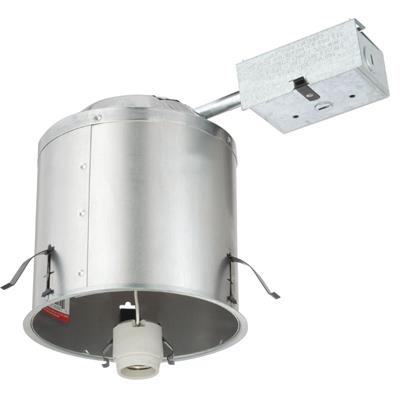

L7XR: Air-tight aluminum housing with heavy-gauge galvanized steel raceway arm. Remodel clips for installation in existing plaster, sheet rock or mechanical ceilings. Galvanized steel junction box with three built-in ROMEX® clamps and ground wire. Not suitable for pulling wires. Rated for 90°C. Socket clips to trim to ensure proper and consistent lamp position.
Trim retention (clips): Retaining clips riveted to top of reflector hold trim inside housing.
Trim retention (TOR): Two side-mounted torsion springs on the trim and two receiving brackets in the can, ensure a consistently tight fit with the ceiling.
Suitable for ceilings up to 1-1/2" thick.
| Size | 6 IN |
| Shape | Round |
| Light Source | Halogen, Incandescent, LED - Static |
| Product Type | Downlight |
| Voltage Rating | 120 |
| Mounting Type | Recessed |
| Series | L7XR |
-
Suggested Replacement Products
PRODUCT INFORMATION
-
Spec Sheets
-
Photometry & Revit (BIM)
CLICK HERE to start your request for a BIM Model or IES file. -
Spectral Data Sheets
-
Guideline Specifications
-
Revit Component Files (Non-Illuminated)
-
Technical Documents (e.g. Instruction Sheets, MSDS, CAD)
Document Type Description Updated View Installation Instructions Installation Instruction Sheet for L7XR, L7XFR, L7XPR, L5R, L3R, LV3R 11/7/2012 View -
Utility Rebate Search
-
Replacement Parts
Document Type Description Updated View Replacement Part Spec Sheet 7 Series Vertical Reflectors Replacement Part Spec Sheet 9/18/2014 View -
