ProductItem

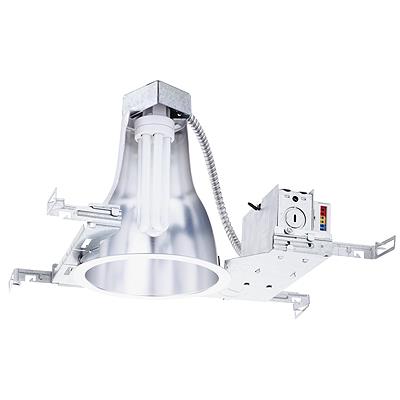

LP6F

6" CFL Vertical
  • Overview
  • Specifications

Ideal for a wide variety of low- to medium-height ceiling applications including commercial, retail and hospitality spaces where open, baffled, wallwash and lensed reflectors are required.


Construction

Rugged, galvanized steel frame-in with high-friction retention clips to secureoptical system. Socket housing attaches to reflector to ensure proper lamp positioning.

Factory-installed captive bar hangers that span up to 24" on center and feature built-in nailers and T-bar clips. Galvanized steel junction box with removable access door, four ROMEX® knockouts, two 3/4" and four 1/2" nominal conduit knockouts with pryout slots. Positioned to allow straight conduit runs.

Remodeling capability; consult factory.

Maximum ceiling thickness 1/2".

Electrical

Electronic ballast with end of life protection standard. Class P thermally protected ballast that protects against improper contact with insulation. Minimum starting temperature is 0°F/-18°C. Rated for #12 AWG conductor through-branch wiring. Minimum 90°C supply wire. Ground wire provided.

Read More
Read Less
Product Type Housing
Series LP6F
  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet 6" Full Reflector, Open Vertical, One lamp 6" Full Reflector, Open Vertical, One lamp 2/24/2011 View
    Spec Sheet 6" Full Reflector, Open Wallwash with Kicker, Vertical, One Lamp 6" Full Reflector, Open Wallwash with Kicker, Vertical, One Lamp 2/24/2011 View
    Spec Sheet 6” Full Reflector, Vertical, Glass Lens 6” Full Reflector, Vertical, Glass Lens 2/24/2011 View
    Spec Sheet LP6F (Old Style) LP6F (Old Style) 10/29/2014 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    1 - 1 of results

    Description Report Design Tools
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions TOR Trim Instruction Sheet L7XFR13T Trim Installation Instruction Sheet 9/16/2014 View
  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet 6 Series Vertical Reflectors 6 Series Vertical Reflectors 9/16/2014 View
