Respond™ headwall

Headwall lighting needed to change. We decided to change it. To better serve patient and practitioner alike, and meet all RP requirements.
    Buy America(n) Option AvailableBuy America(n) Option Available
  • Overview
  • Specifications

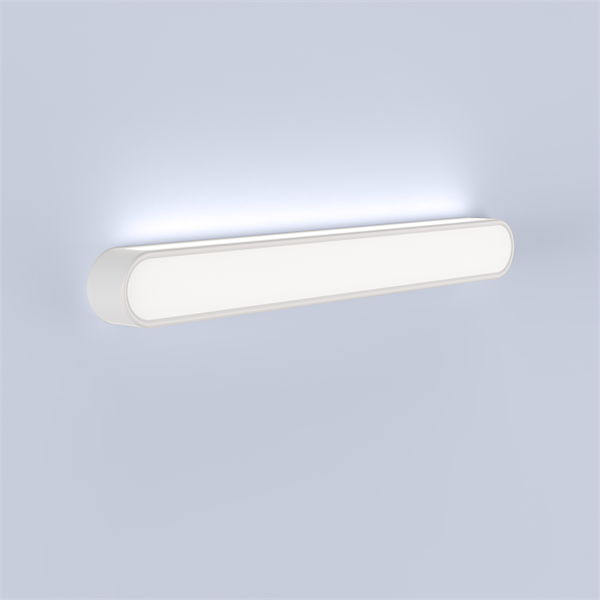

Respond™ revolutionizes headwall lighting. Meeting all IES RP-29 recommended light levels for the patient room in ambient, exam, night observation and reading modes with indirect and direct outputs. We believe Respond™ lights the room without the need for supplemental lighting.
Patient rooms, NICU, senior living, long term care, recovery rooms
Multifunction patient bed luminaire with ambient, exam, night observation modes and reading light. Available in nominal 2ft, 3ft and 4ft lengths, we even offer a pull switch! Multiple front face options, painted or wood grain front to blend into the built environment. Four static white options, featuring direct and indirect output. Optional pull cord. nLight® wired options. Antimicrobial paint standard. Pairs with SensorSwitch Sealed Wall Switch for plug-and play intuitive control. Total System Integration features a 5-year limited warranty by Acuity Brands covering all components and construction.
Read More
Read Less
Application Type Ambulatory Care, Healthcare, Long Term Care, NICU, Outpatient, Patient Room, Pediatric Rooms, Recovery Rooms
Light Source LED - Static
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
Control Platform Sensor Switch Standalone
CRI 90
Environmental Listing Damp Location
Lumens 2400 LM, 3600 LM, 4100 LM, 5200 LM, 6,150 LM, 8500 LM
Regulatory Listing cCSAus, NOM, UL
Mounting Location Wall
Voltage Rating 120, 120-277
Dimming Protocol 0-10V, DALI
Size 2FT, 3FT, 4FT
Product Type Surface Light
Series NRHW
Mounting Type Surface

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet Nightingale-Respond-NRHW.pdf Respond™ headwall 5/9/2025 View

    Design Select
    Take Me There
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    1 - 1 of results

    Description Report Design Tools
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

    Document Type Document Title Description Updated View
    BIM Models NRHW 2FT.zip Revit (BIM) NRHW 2FT 5/30/2025
    BIM Models NRHW 3FT.zip Revit (BIM) NRHW 3FT 5/30/2025
    BIM Models NRHW 4FT.zip Revit (BIM) NRHW 4FT 5/30/2025
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions NRHW Installation Instructions.pdf Respond™ headwall NRHW Installation Instructions 4/24/2025 View
    Installation Instructions NRHW Repair Kit Instructions.pdf Respond™ headwall NRHW Repair Kit Installation Instructions 4/24/2025 View
  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet NRHW Replacement Part Spec Sheet.pdf NRHW Repair Kit Spec Sheet 4/25/2025 View
