Juno

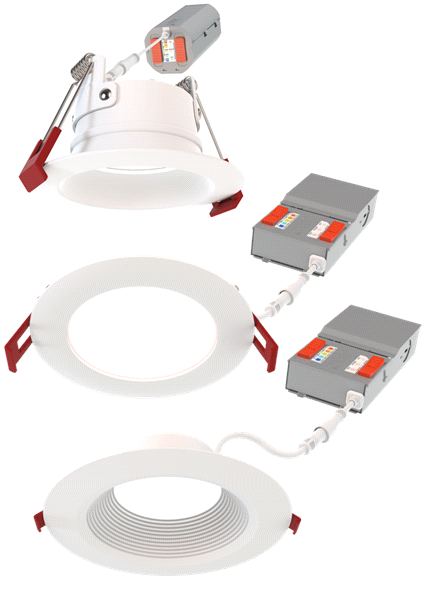

Canless Wafer Downlight

2", 4" and 6" LED Canless Downlight with Switchable White CCT & Adjustable Lumen Outputs, no housing required
    Switchable LumensSwitchable CCTsEnergy Star®CA Title 24/JA8
  • Overview
  • Specifications
Canless Wafer Downlights have an innovative, slim design that installs quickly and easily into as little as 3" of plenum allowing for it to fit into ceiling spaces where most traditional recessed housings do not. No housing required to install. Once installed, our Wafer provides an all-in-one design featuring switchable white color temperature and adjustable lumen output technology. This technology gives distributors, contractors and homeowners the ultimate in flexibility by providing the equivalent of 15 static fixtures in one. The best part is these technologies are controlled by switches located directly on the fixture. Simply toggle each switch to your desired settings: 2700K, 3000K, 3500K, 4000K, or 5000K for color temperature adjustment and low, medium, high for lumen adjustment.
Read More
Read Less
Size 2 IN, 4 IN, 6 IN
Shape Round
Light Source LED - Dynamic
Dynamic Feature Switchable White
Lumens 500 LM, 700 LM, 800 LM, 900 LM, 950 LM, 1050 LM, 1100 LM, 1300 LM, Switchable
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Variable
CRI 90
Product Type Downlight
Compliance Listing CA Title 24, ENERGY STAR®, FCC 47CFR Part 15 Consumer, JA8
Environmental Listing Air Loc, IC, Wet Location
Regulatory Listing CSAus, NOM
Dimming Protocol Forward Phase, Reverse Phase, Triac
Trim Style Baffle, Cone, Decorative, Lensed
Color Black, Bronze, Nickel, White
Mounting Type Recessed
Voltage Rating 120, 120-277, MVOLT
Fixture Wattage 10, 14.5, 16
Lamp Base Not Applicable
Series WF2, WF2TRIM, WF4, WF6

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet 3-JUNO-WAFERS-DIM.pdf Juno Wafer Dimmer Compatibility List 3/26/2024 View
    Spec Sheet Juno-Contractor-Select-WF2-ALO_SWW5-LED-Flat-Wafer-Canless-Downlight.pdf Contractor Select 2" LED Flat Canless Downlight, Switchable White CCT & Adjustable Lumen Outputs 8/28/2024 View
    Spec Sheet Juno-Contractor-Select-WF2-DREG_ALO_SWW5-LED-Deep-Regressed-Wafer-Canless-Downlight.pdf Contractor Select 2" LED Deep Regressed Canless Downlight, Switchable White CCT, Adj Lumen Outputs 8/28/2024 View
    Spec Sheet Juno-Contractor-Select-WF4_WF6-ALO_SWW5_DREG-LED-Wafer-Canless-Downlight.pdf Contractor Select 4" and 6" LED Deep Regressed Canless, Switchable White CCT, Adjust Lumen Outputs 7/22/2024 View
    Spec Sheet Juno-Contractor-Select-WF4_WF6-ALO_SWW5-LED-Ultra-Thin-Wafer-Canless-Downlight.pdf Contractor Select 4" and 6" LED Flat Canless, Switchable White CCT & Adjust Lumen Outputs 5/28/2024 View
    Spec Sheet JUNO-WF4_WF6-ALO_SWW5-Flat-Deep_Regressed-LED-Wafer-Canless-Downlight.pdf 4" and 6" LED Flat and Deep Regressed Canless Downlight with Switchable White CCT and Adjustable Lum 3/26/2025 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There
    View Product

    Need a Stocked Product?

    View Now

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    1 - 1 of results

    Description Report Design Tools
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF2_ALO25_SWW5_27K_90CRI.pdf Juno WF2 ALO25 SWW5 27K 90CRI 3/5/2024 View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF2_ALO25_SWW5_30K_90CRI.pdf Juno WF2 ALO25 SWW5 30K 90CRI 3/5/2024 View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF2_ALO25_SWW5_35K_90CRI.pdf Juno WF2 ALO25 SWW5 35K 90CRI 3/5/2024 View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF2_ALO25_SWW5_40K_90CRI.pdf Juno WF2 ALO25 SWW5 40K 90CRI 3/5/2024 View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF2_ALO25_SWW5_50K_90CRI.pdf Juno WF2 ALO25 SWW5 50K 90CRI 3/5/2024 View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF2_DREG_ALO25_SWW5_27K_90CRI.pdf Juno WF2 DREG ALO25 SWW5 27K 90CRI 3/5/2024 View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF2_DREG_ALO25_SWW5_30K_90CRI.pdf Juno WF2 DREG ALO25 SWW5 30K 90CRI 3/5/2024 View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF2_DREG_ALO25_SWW5_35K_90CRI.pdf Juno WF2 DREG ALO25 SWW5 35K 90CRI 3/5/2024 View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF2_DREG_ALO25_SWW5_40K_90CRI.pdf Juno WF2 DREG ALO25 SWW5 40K 90CRI 3/5/2024 View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF2_DREG_ALO25_SWW5_50K_90CRI.pdf Juno WF2 DREG ALO25 SWW5 50K 90CRI 3/5/2024 View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF4_ALO19_SWW5_27K_90CRI.pdf Juno WF4 ALO19 SWW5 27K 90CRI 7/26/2023 View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF4_ALO19_SWW5_30K_90CRI.pdf Juno WF4 ALO19 SWW5 30K 90CRI 7/26/2023 View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF4_ALO19_SWW5_35K_90CRI.pdf Juno WF4 ALO19 SWW5 35K 90CRI 7/26/2023 View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF4_ALO19_SWW5_40K_90CRI.pdf Juno WF4 ALO19 SWW5 40K 90CRI 7/26/2023 View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF4_ALO19_SWW5_50K_90CRI.pdf Juno WF4 ALO19 SWW5 50K 90CRI 7/26/2023 View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF4_DREG_B_ALO19_SWW5_27K_90CRI.pdf Juno WF4 DREG B ALO19 SWW5 27K 90CRI 7/26/2023 View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF4_DREG_B_ALO19_SWW5_30K_90CRI.pdf Juno WF4 DREG B ALO19 SWW5 30K 90CRI 7/26/2023 View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF4_DREG_B_ALO19_SWW5_35K_90CRI.pdf Juno WF4 DREG B ALO19 SWW5 35K 90CRI 7/26/2023 View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF4_DREG_B_ALO19_SWW5_40K_90CRI.pdf Juno WF4 DREG B ALO19 SWW5 40K 90CRI 7/26/2023 View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF4_DREG_B_ALO19_SWW5_50K_90CRI.pdf Juno WF4 DREG B ALO19 SWW5 50K 90CRI 7/26/2023 View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF6_ALO20_SWW5_27K_90CRI.pdf Juno WF6 ALO20 SWW5 27K 90CRI 7/26/2023 View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF6_ALO20_SWW5_30K_90CRI.pdf Juno WF6 ALO20 SWW5 30K 90CRI 7/26/2023 View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF6_ALO20_SWW5_35K_90CRI.pdf Juno WF6 ALO20 SWW5 35K 90CRI 7/26/2023 View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF6_ALO20_SWW5_40K_90CRI.pdf Juno WF6 ALO20 SWW5 40K 90CRI 7/26/2023 View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF6_ALO20_SWW5_50K_90CRI.pdf Juno WF6 ALO20 SWW5 50K 90CRI 7/26/2023 View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF6_DREG_B_ALO20_SWW5_27K_90CRI.pdf Juno WF6 DREG B ALO20 SWW5 27K 90CRI 7/26/2023 View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF6_DREG_B_ALO20_SWW5_30K_90CRI.pdf Juno WF6 DREG B ALO20 SWW5 30K 90CRI 7/26/2023 View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF6_DREG_B_ALO20_SWW5_35K_90CRI.pdf Juno WF6 DREG B ALO20 SWW5 35K 90CRI 7/26/2023 View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF6_DREG_B_ALO20_SWW5_40K_90CRI.pdf Juno WF6 DREG B ALO20 SWW5 40K 90CRI 7/26/2023 View
    Spectral Data Sheet Spectral_Data_Report_Juno_WF6_DREG_B_ALO20_SWW5_50K_90CRI.pdf Juno WF6 DREG B ALO20 SWW5 50K 90CRI 7/26/2023 View

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions JUNO_2NCMFLP_912-00519-001.pdf Juno 2" New Construction Mounting Frame with Lip 8/28/2024 View
    Installation Instructions Juno_Deep_Regressed_ALO_SWW5_Instruction_Sheet_912-00460-002.pdf Juno 4" and 6" Deep Regressed, Adjustable Lumen Output and Switchable CCT Wafer Instruction Sheet 7/14/2023 View
    Installation Instructions Juno_Flat_ALO_SWW5_Instruction_Sheet_912-00460-001.pdf Juno 4" and 6" Ultra-Thin, Adjustable Lumen Output and Switchable CCT Wafer Instruction Sheet 7/14/2023 View
    Installation Instructions Juno_Wafer_new_ construction_plate_instruction_sheet.pdf Juno Wafer Universal New Construction Mounting frame 5/2/2022 View
    Installation Instructions Juno_WF2_Flat_Deep_Regressed_Instruction_Sheet_912-00497-001.pdf Juno 2" Flat and Deep Regressed, Adjustable Lumen Output and Switchable CCT Wafer Instruction Sheet 4/4/2024 View
