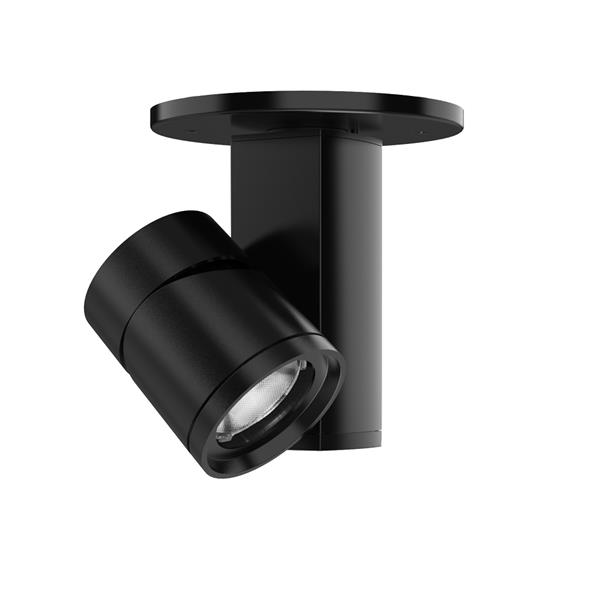

T382L CPY Canopy Mount Fixture

Trac-Master® Vertical Cylinder LED Trac Head with Direct Canopy Mount Option

The classic appearance of the T382L Series LED Vertical Cylinder fixture with Canopy Mount option offers a fresh take on the traditional aesthetic. This 17W state-of-the-art design delivers over 1800 lumens, is up to 80% more efficient than equivalent halogen, and has a rated life of 50,000 hours. It is available in 2700K, 3000K, 3500K and 4000K color temperatures and 80 or 90 CRI versions. Optional SpectralWhite color/white enhancing versions offer 90 CRI, rendering colors richly and making whites appear naturally brilliant. These fixtures can be mounted on horizontal surfaces (ceilings) or vertical surfaces (walls) or any orientation in between. Ideally suited to help with energy code compliance, the CPY option also enables 120V, 277V, or 347V operation and enables phase or 0-10V dimming.

Read Less

Shape	Cylinder
Light Source	LED - Static
Lumens	1800 LM
CCT / LED Color	2700 K, 3000 K, 3500 K, 4000 K
CRI	80, 90, 90 SpectralWhite
Product Type	Track Head
Compliance Listing	BAA and BABA
Environmental Listing	Damp Location
Regulatory Listing	C-UL-US, cUL, UL
Dimming Protocol	0-10V, Electronic Low Voltage, Forward Phase, Incandescent, Magnetic Low Voltage, Reverse Phase
Color	Black, White
Mounting Type	Surface, Track/Monopoint
Voltage Rating	120-277, 347
Fixture Wattage	17
Track Mounting Adapter	CANOPY
Series	T382L

PRODUCT INFORMATION

Spec Sheets

Document Type	Document Title	Description	Updated	View	Download	Email
Spec Sheet	T382L G2.pdf	T382L G2 Spec Sheet	10/14/2024	View	Download	Email
Spec Sheet	T382L-G2-DIM.pdf	T382L G2 Dimming Spec Sheet	11/16/2020	View	Download	Email

Need to Create a Submittal Spec Sheet?

Take Me There

Photometry & Revit (BIM)

(ies) 243 Trim .ies
(BIM) 243 Trim BIM

Search within... Use %(percent) to separate search terms.

1 - 1 of results

View Form Sizing

Description	Report	Design Tools	.ies	BIM

CLICK HERE to start your request for a BIM Model or IES file.

Spectral Data Sheets
Guideline Specifications
Revit Component Files (Non-Illuminated)

Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

Document Type	Document Title	Description	Updated	View	Download	Email
Installation Instructions	deep canopy install instructions_rev 3.1 - French.pdf	Installation Instructions for Deep Canopy Mounting Option - French	5/29/2024	View	Download	Email
Installation Instructions	deep canopy install instructions_rev 3.1 - Spanish.pdf	Installation Instructions for Deep Canopy Mounting Option - Spanish	5/29/2024	View	Download	Email
Installation Instructions	deep canopy install instructions_rev 3.1.pdf	Installation Instructions for Deep Canopy Mounting Option	5/8/2024	View	Download	Email
Installation Instructions	slim canopy install instructions_rev 3.1 - French.pdf	Installation Instructions for Slim Canopy Mounting Option - French	6/4/2024	View	Download	Email
Installation Instructions	slim canopy install instructions_rev 3.1 - Spanish.pdf	Installation Instructions for Slim Canopy Mounting Option - Spanish	6/4/2024	View	Download	Email
Installation Instructions	slim canopy install instructions_rev 3.1.pdf	Installation Instructions for Slim Canopy Mounting Option	5/8/2024	View	Download	Email

Utility Rebate Search
Replacement Parts
Confidential Documents

Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

Document Type	Document Title	Description	Updated	View	Download	Email
Sell Sheet	JUN_Direct Canopy Mount Option Sell Sheet.pdf	Juno Trac Direct Canopy Mount Option Sell Sheet	9/25/2024	View	Download	Email

Archived Documents
